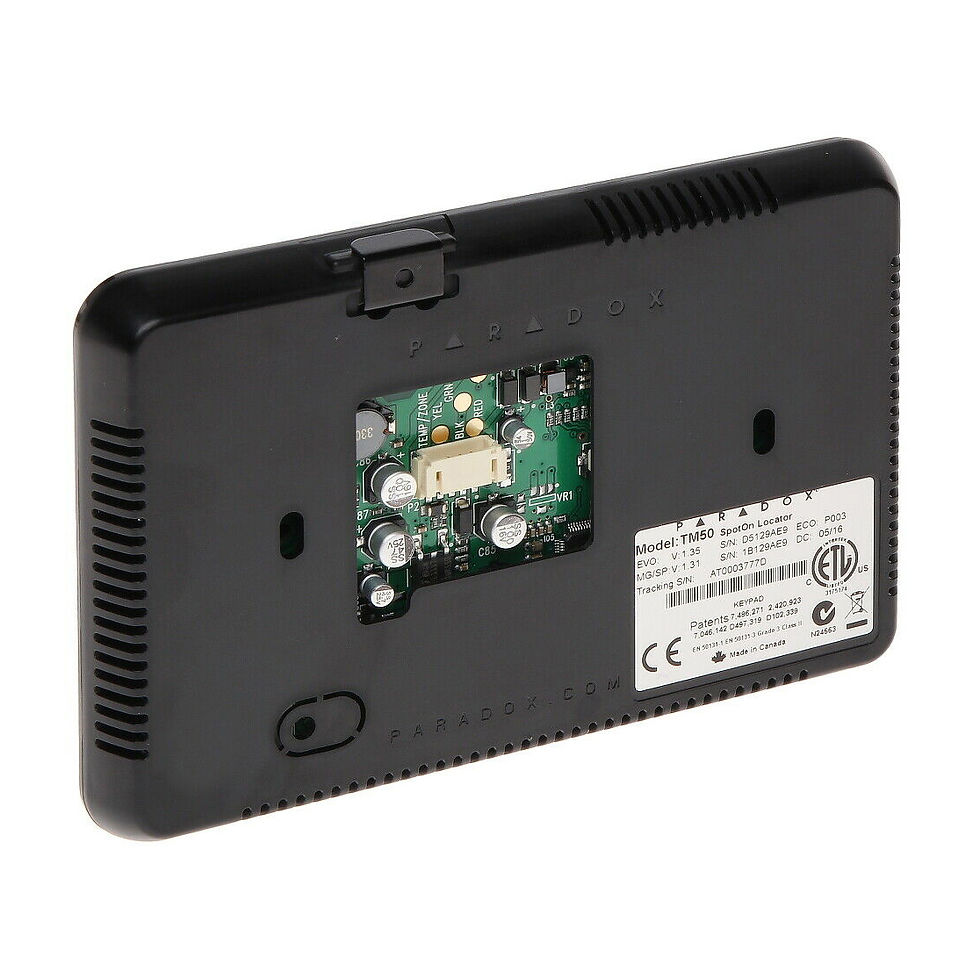

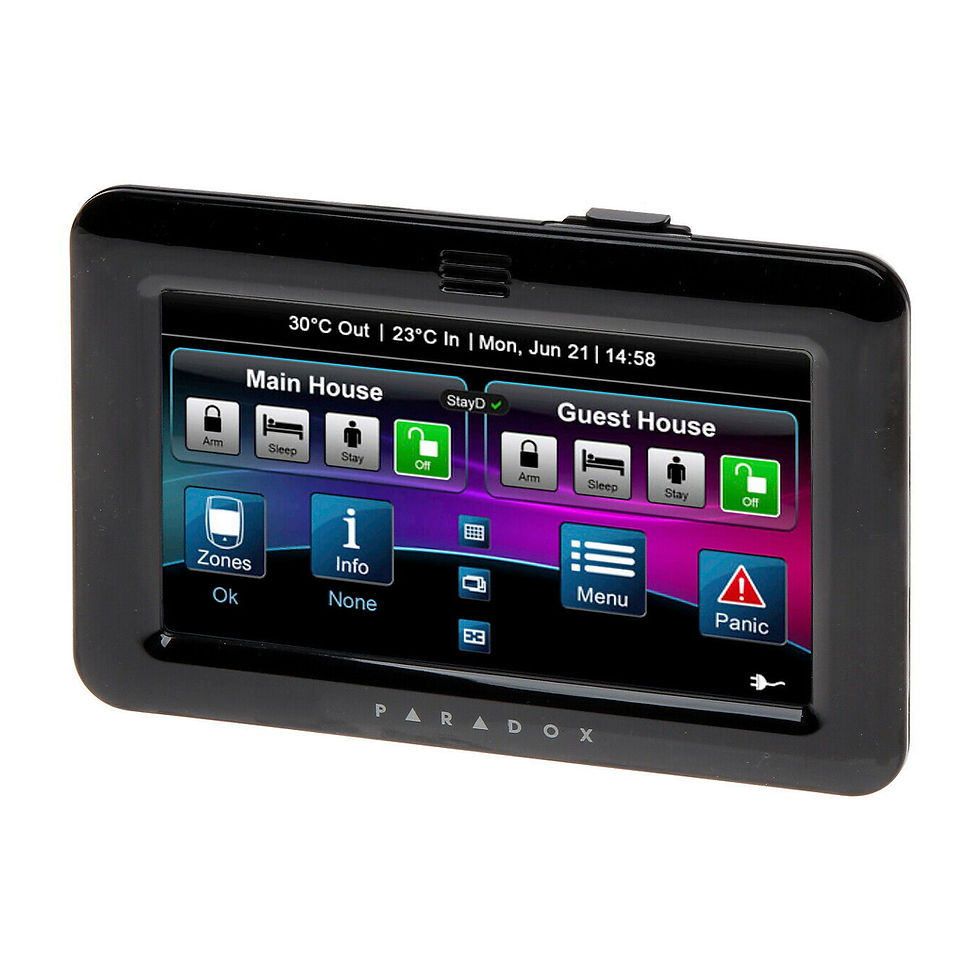

Paradox TM50 Touch Graphic Display Keypad (PIANO BLACK)

Introduction

The Tm-50 Touch Keypad Does Not Only Stand For Attractive Design, But Also For Simplification For The Daily Operation Of Advanced Alarm Systems And Home Automation Using The Functionalities Of The Paradox: Digiplex Evo, Spectra, Magellan Control Units.

Simple And Intuitive Menu Makes The System Operations Simple And Obvious. Floor Plans Displaying Function Allows To Immediate Localization Of The Violated Detector. The Synoptic Table Mode Enables Viewing The Status Of All Partitions And Lines On One Screen. A Complement Of The Alarm System Functions Is A Possibility To Display Indoor And Outdoor Temperatures (Extra Sensor Needed). In Screen Saving Mode A Touchscreen Can Be Used As "Photo Frame" Displaying The Images Saved On Microsd Card.

Highlights

·       User-friendly

Featuring Intuitive Menus And Icons, Ultra-fast Response Time When Scrolling Through Pages, And Clear And Precise Menu-driven Prompts; The Tm50 Makes The User Experience Easier And Friendlier Than Ever

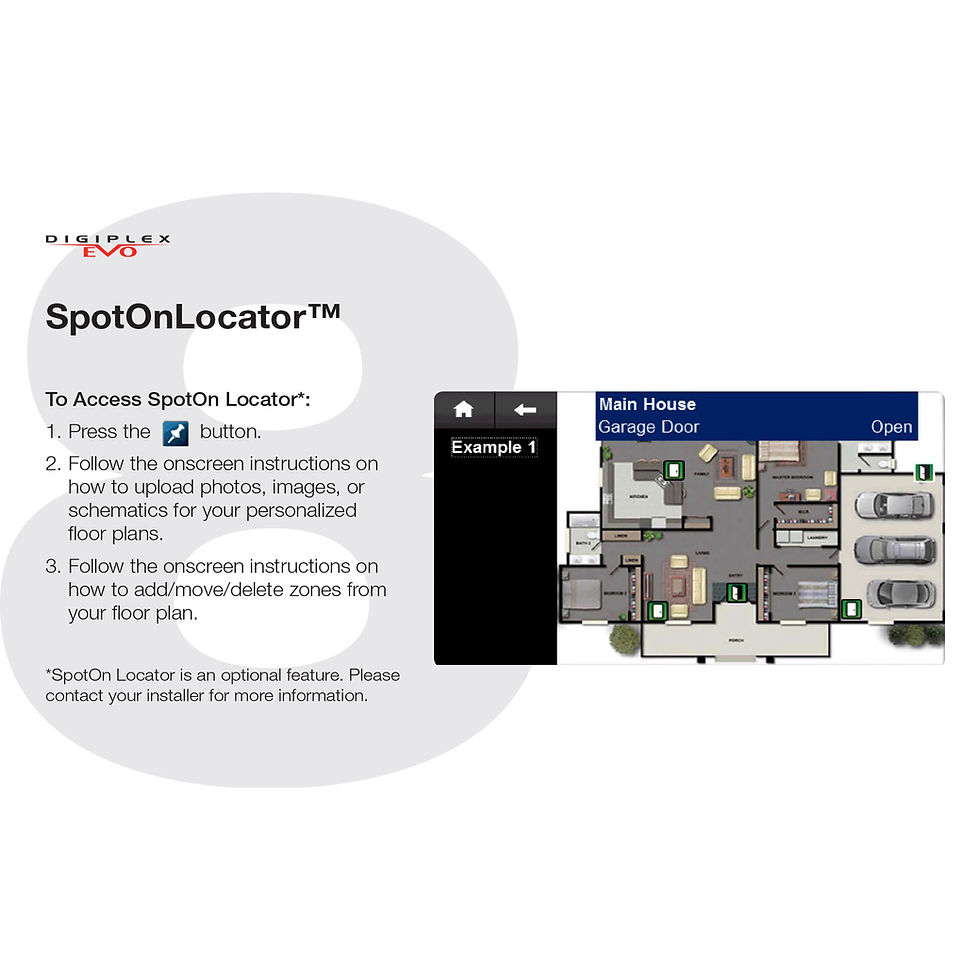

·       Spoton Alarm Locatortm

This Optional Feature Allows The User To Upload Up To 32 Floor Plans To The Tm50, Providing A Graphic Verification Of Zone Locations Customizable With Illustrations Or Photographs.

·       Onescreen Monitoringtm

This Optional Feature Displays The Arming Status Of All Partitions And Zones. Also, With Solo Testt Mode, You Can Easily Test All System Zones Right From The Tm50's Screen.

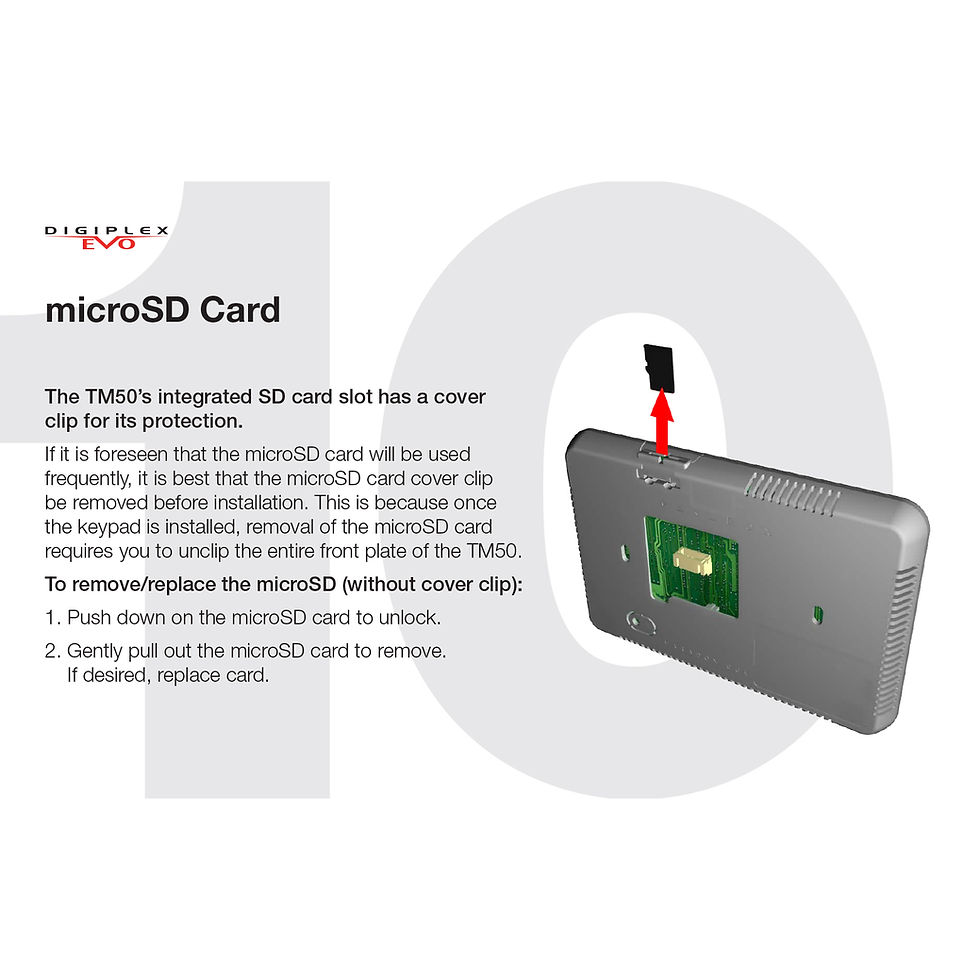

·       External Sd Media Card Slot

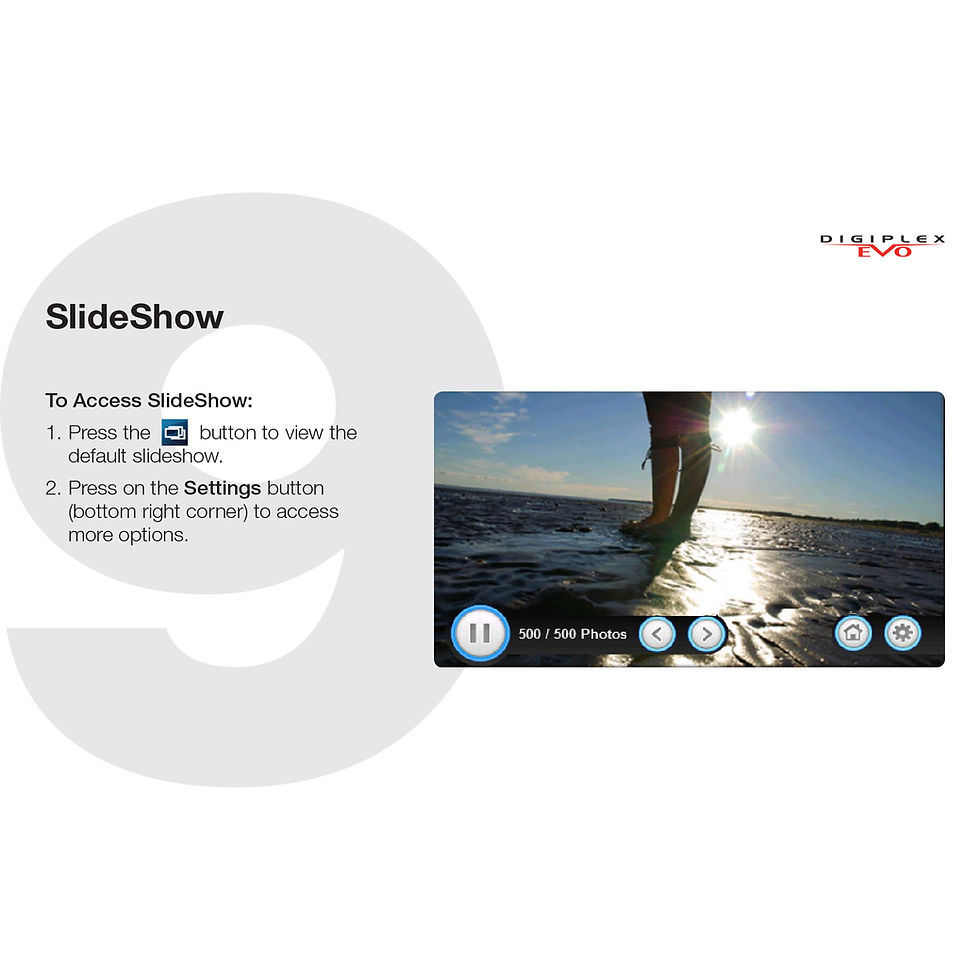

Used To Upload Photos For Use With The Slide Show Function And Easily Upgrade Firmware.

·       Customizable Labels

Allows The User To Customize And Edit Zones, Areas, Users, And Pgm Labels.

·       Choose Your Language

Available In A Number Of Languages - Now Also Arabic!

Main Features:

Easily Readable Lcd With Backlight Displaying Detailed Information On System State
5 " Capacitive Touch Screen - 16 Bit / 480 X 272 Px,
1 Input - The Ability To Connect 1 Alarm Zone / Temperature Sensor
Osd Menu Full In Polish
Assign To One Or More Partitions
Alarms: Keypad Hold-down Panic, Fire And Aux
Independently Set Chime Zones
Bbuzzer For Acoustic Signaling Of Some System Events
Spoton Locator - Floor Plans Function,
One Screen Monitoring - Synaptic Table Function,
Connects To 4-wire Communication Bus
Possibility To Control 8 Pgm Outputs
Temperature Sensor,
The Microsd Cards Support - Floor Plans And Images Loading (Not Included),
Digital Photo Frame Mode

Further Features:

Thin, Sleek Design
5.0 In. / 12.7 Cm Vivid Color Display (480 X 272 Pixels)
Intuitive, Icon-based Menus - No Manual Needed
Control Up To 8 Pgm Outputs
In-field Firmware Upgradable Via Micro Sd Card
Powerful Advanced Processor
1x Zone/temperature Input To Connect A Detection Device Or Any External Temperature Sensor (10k Ohm Thermistor)
Customized Translation Via Web Application
Surface-mount Installation Only; Dimensions 14.4 X 9.6 X 1.4 Cm (5.7 X 3.8 X 0.6 In.)
